Automatic Fire Curtain System
Fire safety that disappears until the moment it matters.
Redefining fire safety through intelligent design, seamless integration, and uncompromising performance — concealed within ceilings, invisible in daily use, and deployed automatically the instant it’s needed.
- BS 5867 Fire Retardant
- ASTM Anti-Microbial
- AATCC Anti-Fungal
- IS-390 Water Repellant
• About the System
The next generation of passive fire protection.
Fire Curtain Systems automatically deploy and compartmentalise fire and smoke without disrupting architectural aesthetics. Discreetly concealed within ceilings, they remain invisible during daily operations and activate instantly during emergencies.
The Challenge
Modern buildings demand open, aesthetic spaces — but fire safety solutions often interfere with design, space, and usability. A Vista Fire Curtain resolves that conflict: fully hidden, fully automatic.
How It Works
- Fire/smoke detected via sensors
- Automatically deploys within seconds
- Signal sent to control panel
- Contains fire & smoke within a defined zone
- Supports safe evacuation
- Resets after inspection
• Models
Fixed Fire Curtain (VFC-03)
VFC-01-120 Fire Curtain
2 Hours Fire Rating · Up to 1050° Celsius

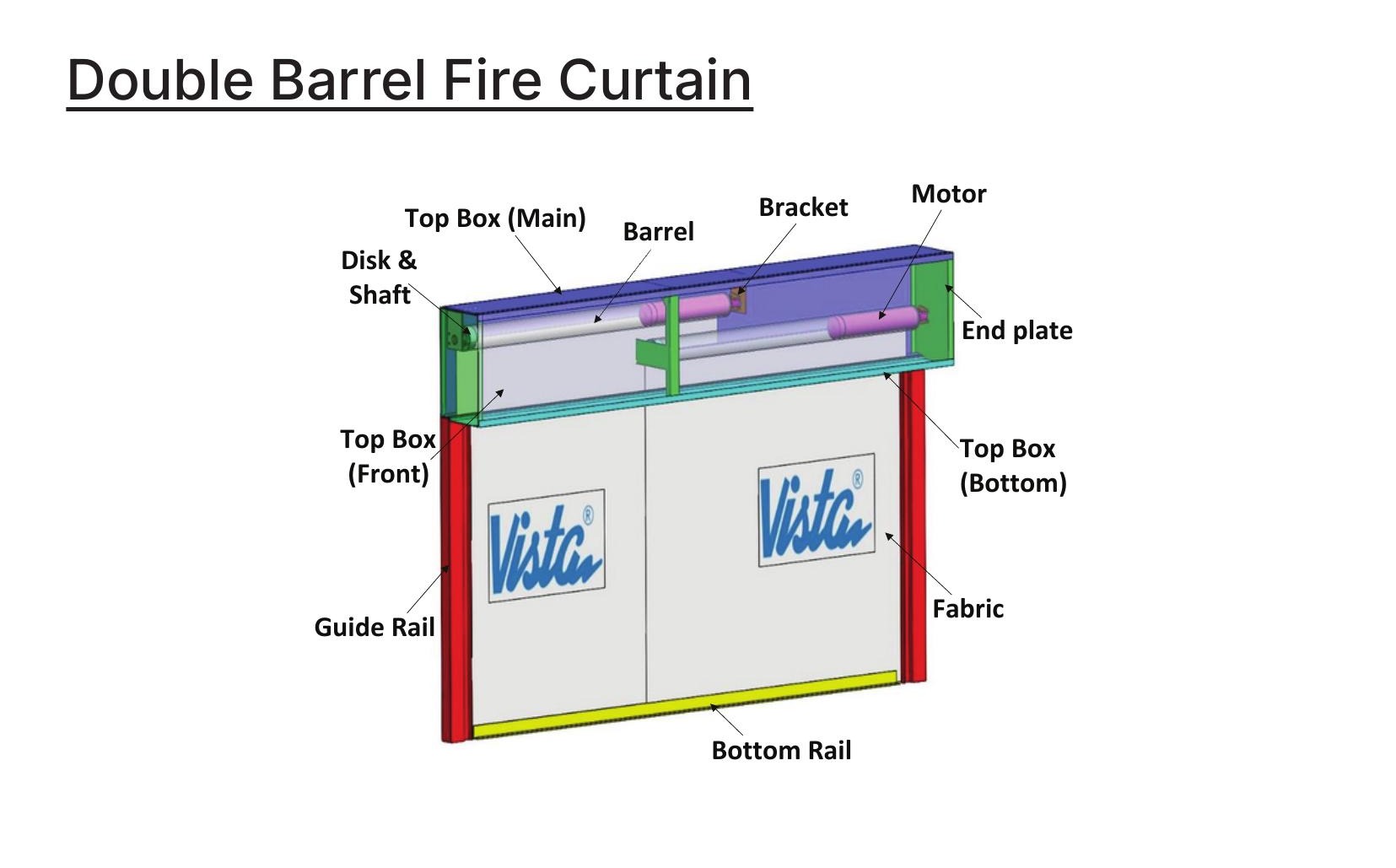

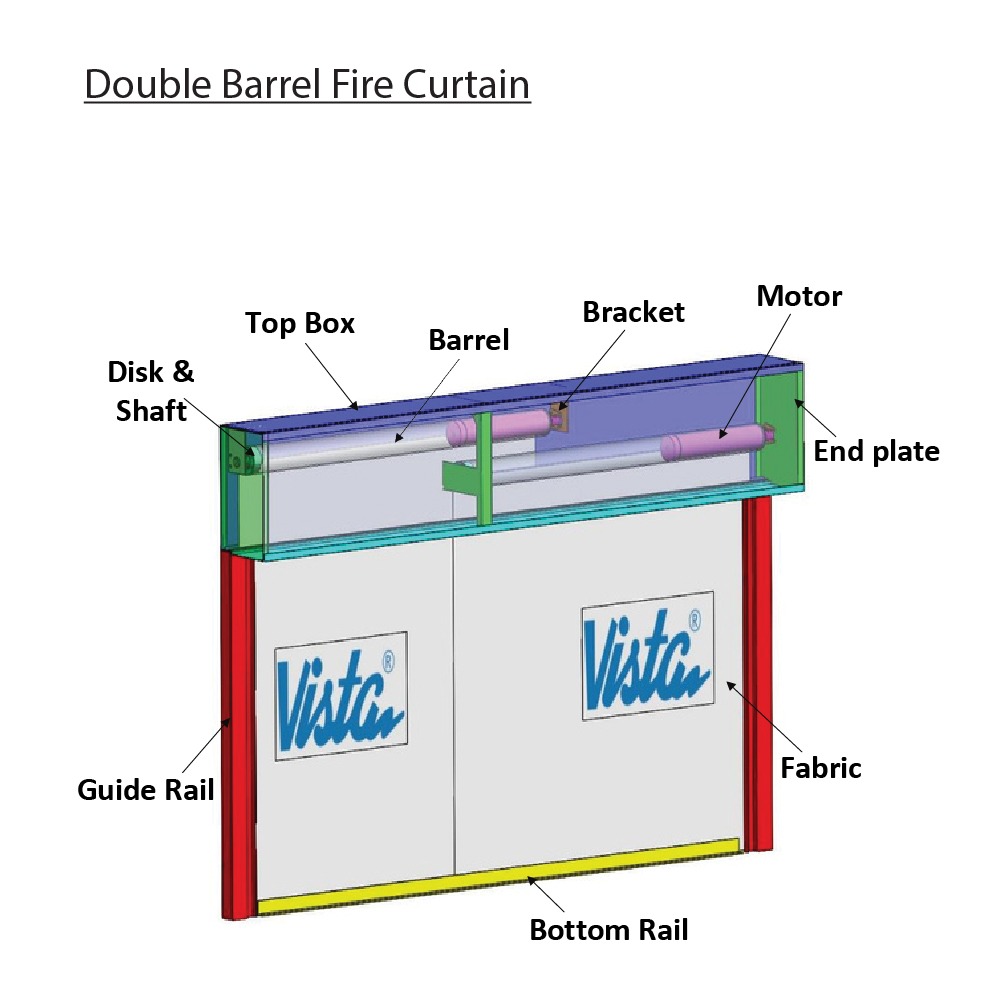

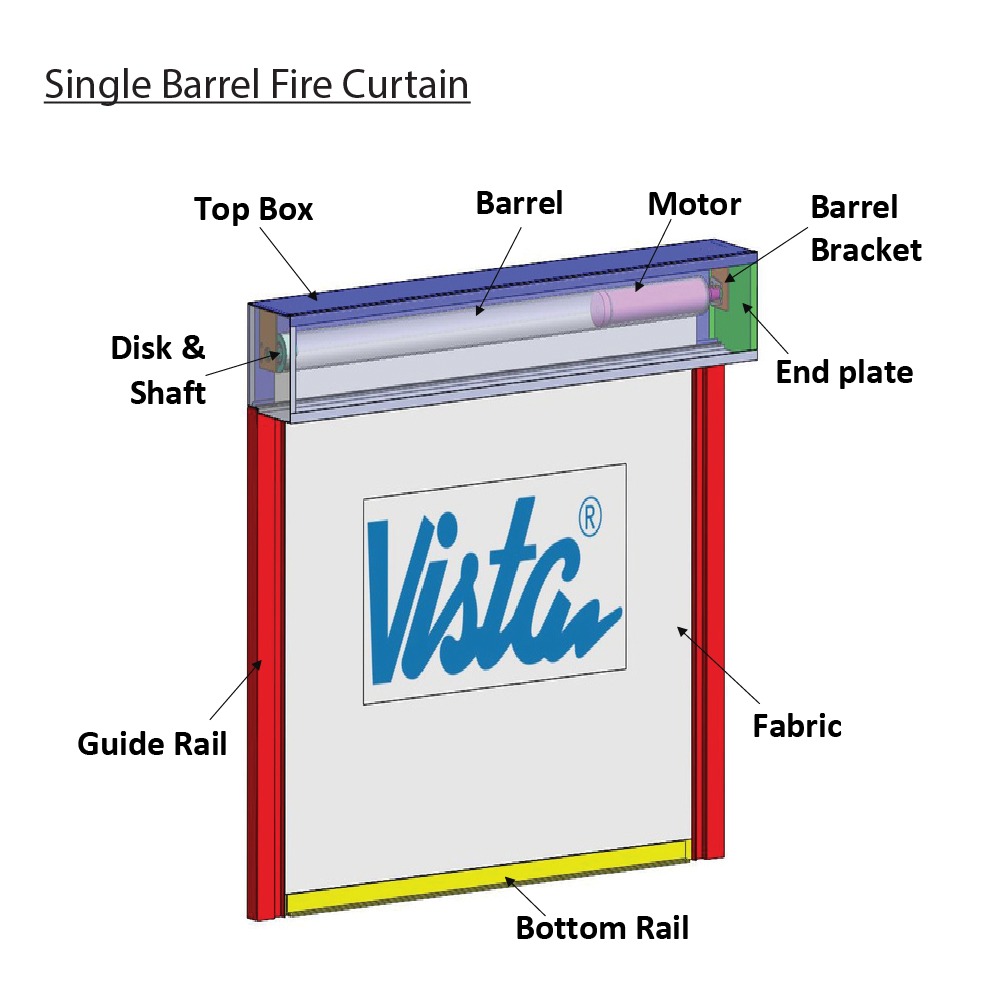

The FC 120 features a robust 1.2mm GPSP steel sheet head box, with removable cover plates for easy access to the curtain roller system. 40mm smaller or larger head boxes are available where curtain drops exceed 3m. A suitably weighted bottom bar helps prevent deflection and ensures reliable operation under gravity. The fabric has a thickness of 0.6667mm (±10%), features an 8-shaft satin weave, and is tested to withstand temperatures of up to 1050°C for 120 minutes.
EN 1634-1: 2014+A1:2018 – Fire Resistance & Smoke control tests.
EN -13501-1 : 2007+A1:2009 – Reaction to fire Classification : A2 – s1, d0.
Key Specification
Headbox
1.2mm galvanized mild steel
Rollers
76mm coated mild steel tube
Motors
24V DC
Fabric
Stainless steel reinforced fabric
Bottom Bar
40mm × 50mm × 4mm thick steel
Side Guides
1.2mm galvanized mild steel
Headbox Size
210mm × 210mm (standard)
Fabric Weight
~690 g/m² (±10%)
VFC-02-120 Fire Curtain
2 Hours Fire Rating · Up to 1050° Celsius
The VFC Fire Curtain features a robust 1.2mm GPSP steel sheet head box designed to withstand temperatures equivalent to the curtain fabric, with removable cover plates for easy access. Larger head box sizes are available for curtain drops exceeding 3m. The 8-shaft satin weave fabric has a reinforced thickness of 0.6mm (±10%) and is tested to withstand temperatures of up to 1050°C for 120 minutes.
EN 1363-1: 2000 – Fire Resistance Tests, Part 1: General requirements
EN 1363-2: 1999 – Fire Resistance Tests, Part 2: Alternative & additional procedures
Key Specification
Headbox
1.2mm galvanized MS, 2mm end caps, powder coated
Rollers
100mm coated mild steel tube
Motors
24V DC
Fabric
Stainless steel reinforced fibre glass fabric
Bottom Bar
40mm × 50mm × 4mm MS, powder coated
Side Guides
100 × 60
Headbox Size
210mm × 350mm (standard)
Fabric Weight
~690 g/m² (±10%)
Fixed Fire Curtain (VFC-03)
2 Hours Fire Rating · Up to 1050° Celsius
Cavity Barriers are designed to provide effective compartmentation within building structures, particularly in
concealed areas such as roof voids, ceiling voids, and spaces above suspended ceilings. These barriers play an
important role in improving fire safety by limiting the movement of fire and smoke through hidden cavities, help
ing to prevent fire from spreading between different areas of a building.
By creating a reliable separation within concealed spaces, these systems support the overall fire protection
strategy of a building and help maintain safer conditions for occupants and emergency responders. Their
discreet installation makes them suitable for a wide range of commercial, industrial, and modern building appli
cations where concealed fire protection is essential.
Specialised Automatic Fire Curtains (VFC-04-120)
2 Hours Fire Rating · Up to 1050° Celsius
These specialized Fire Curtain Is an electrically operated automatic Fire Barrier, to be used to form a Continuous barrier against Fire curtains. Specialized shapes L, U & 4 Sided Rectangular/Square shape Curtain with Galvanized MS Head Box, Powercoated, without intrusive columns at corners, with side guides only at end for L/U shape and outside guides for square or rectangular & with bottom bar with motors for power operated with standard battery backup & operated system fixed into steel rollers with woven glass fibre fabric reinforced with stainless steel wire having micronized aluminium polymer coating on each side of the fabric with single necessary group control panel for multiple Motors. The operation is suitable for dedicated 240 Volts 50 Hz AC Supply. Complete System is in Accordance.
• Technical Specifications
Performance figures across the range.
A T-bottom bar is provided as standard — designed to supply the necessary weight to draw the curtain down during gravity fail-safe deployment.
Fire Rating
Up to 120 minutes
Operating System
Gravity fail-safe, motorised control
Deployment Speed
0.06 – 0.15 m/s
Maximum Drop
Up to 12 metres
Width Capability
Spans up to 45 metres
Control Integration
Compatible with fire alarm systems
Power Supply
230V AC + battery backup
Fabric Material
Fire-resistant fibreglass, steel mesh reinforced
• Technical Specifications
Performance figures across the range.
A T-bottom bar is provided as standard — designed to supply the necessary weight to draw the curtain down during gravity fail-safe deployment.

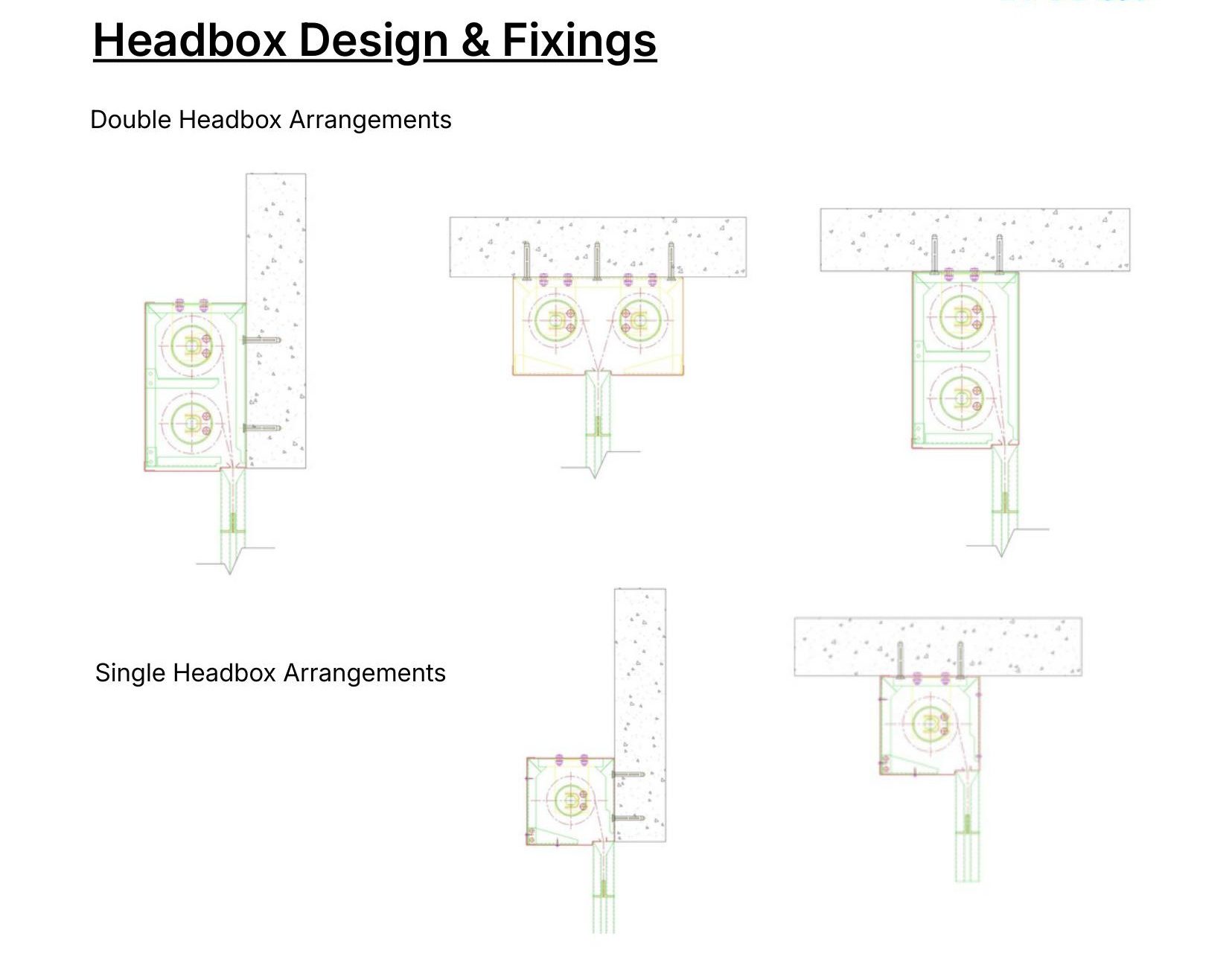

• Headbox Design & Fixings
Flexible fixing options for any ceiling.

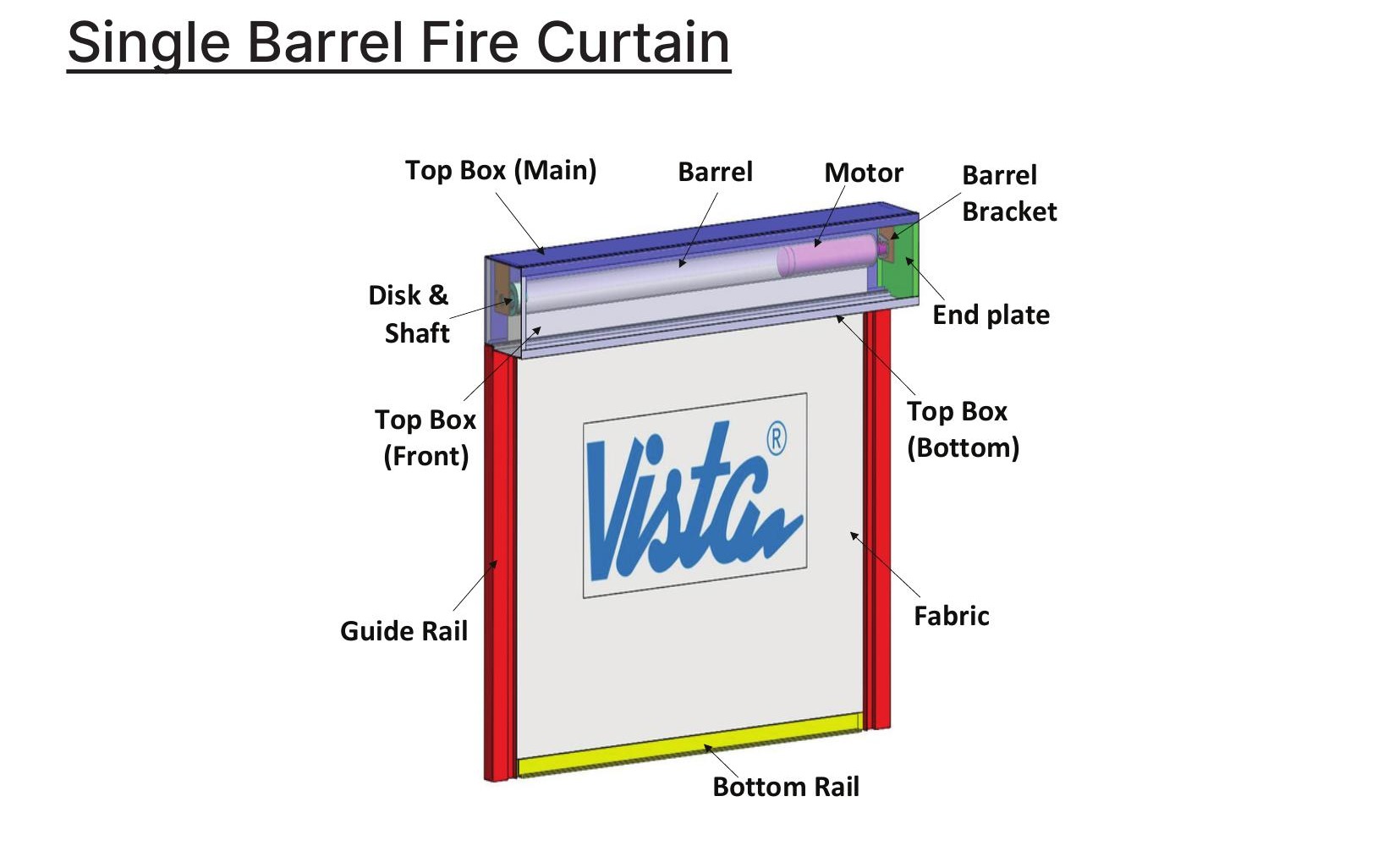

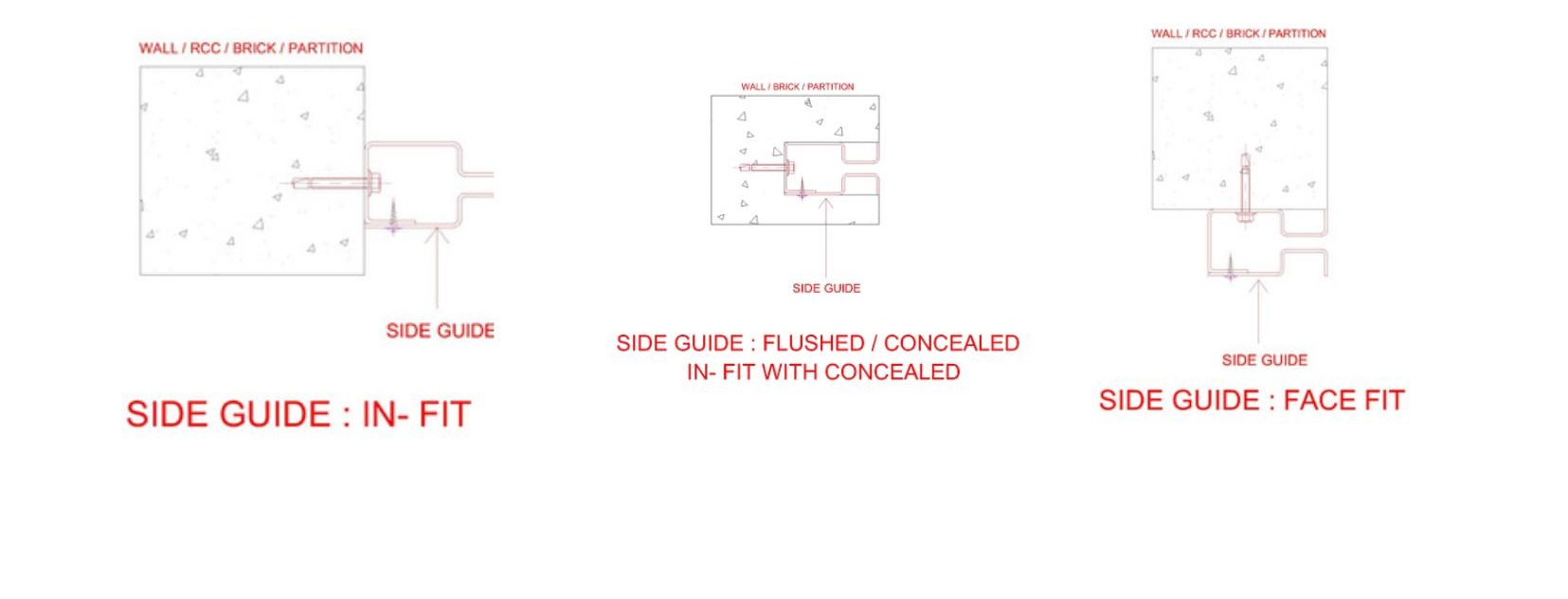

Single and double headbox arrangements accommodate different ceiling and structural configurations, with side-guide fixing options for the operable fabric.
• Why Choose us
Precision engineering, backed by testing.
Fire Rating
Up to 120 minutes
Operating System
Gravity fail-safe, motorised control
Deployment Speed
0.06 – 0.15 m/s
Maximum Drop
Up to 12 metres
• Application Types
Eight ways a Vista Fire Curtain protects a building.

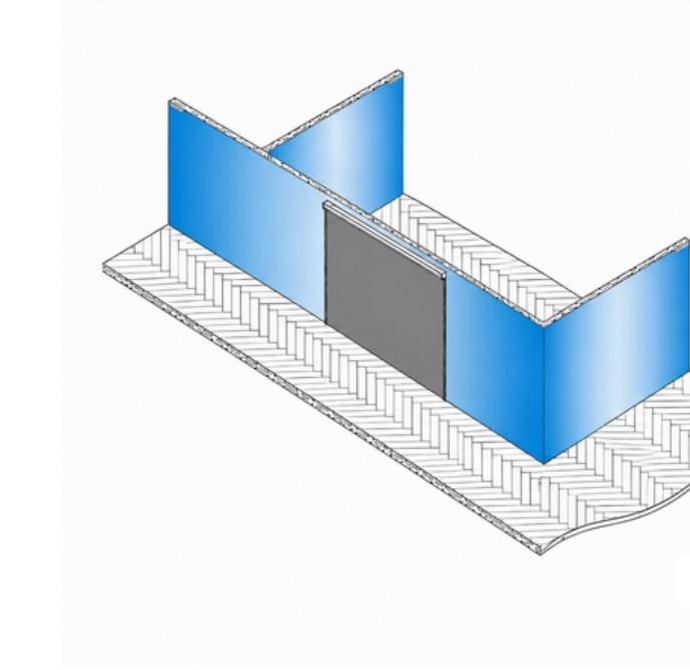

Refuge Area Protection

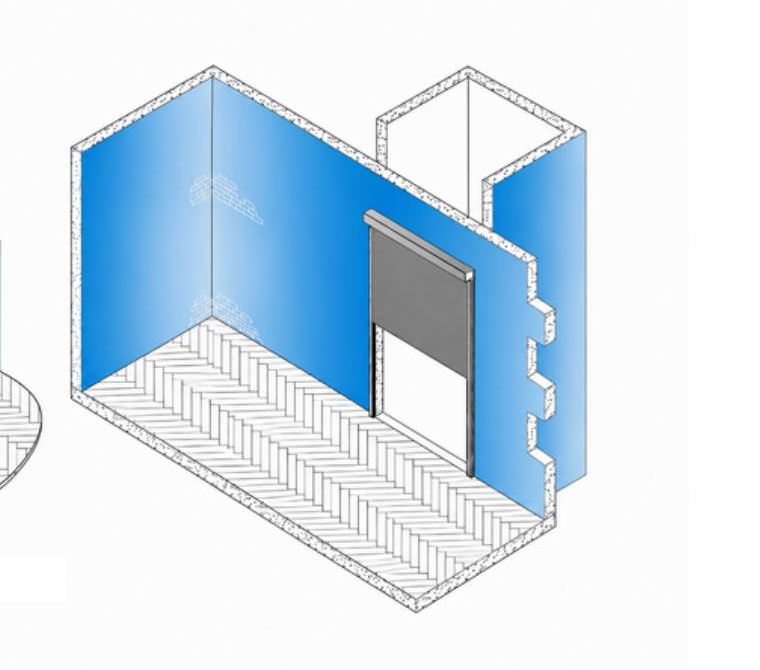

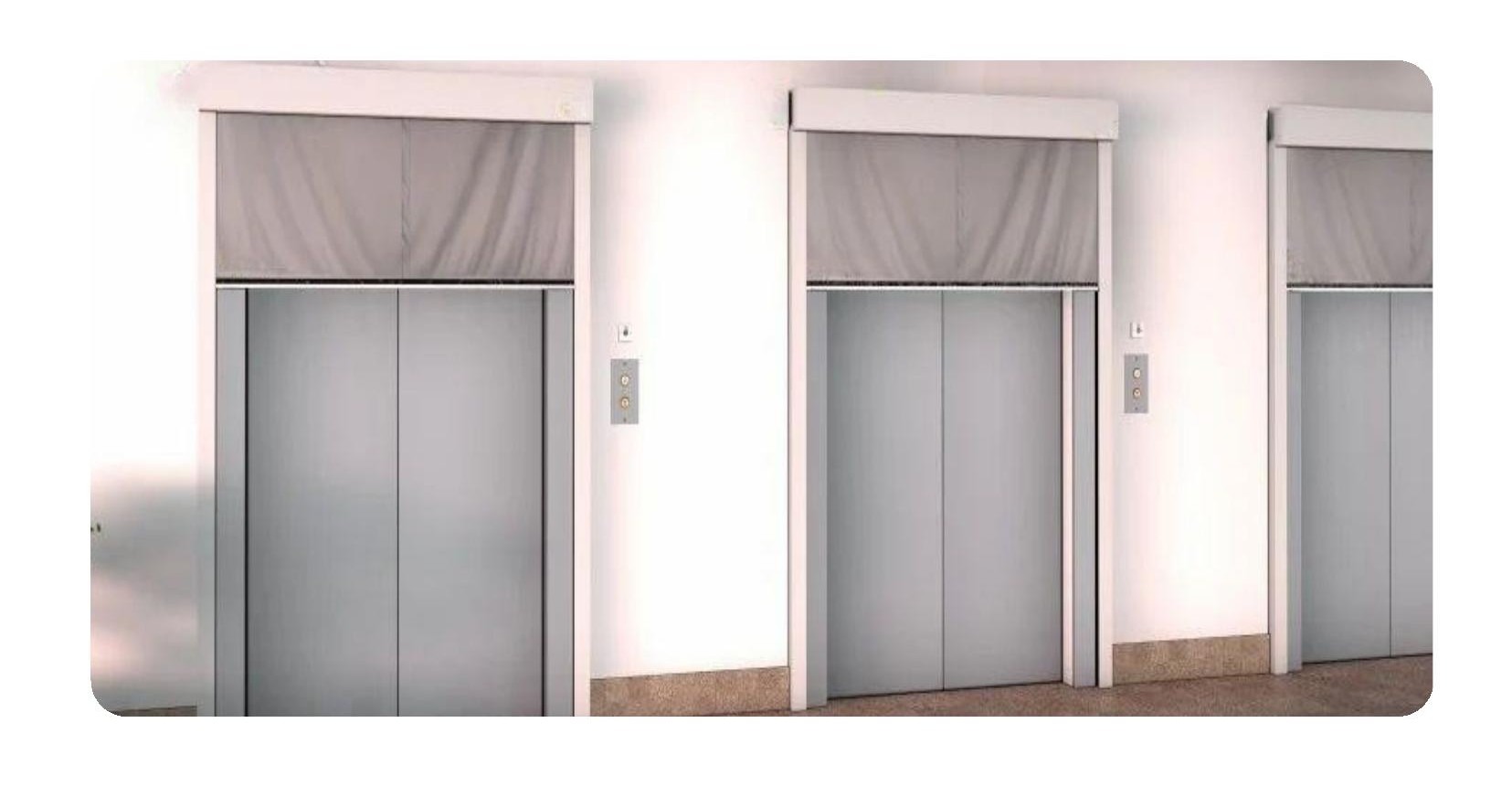

Elevator Doors Protection

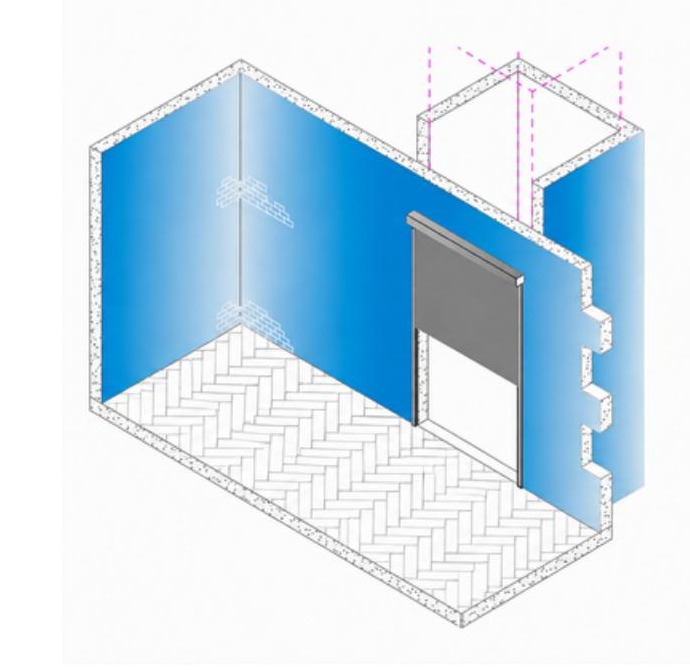

Elevator Lobby Protection

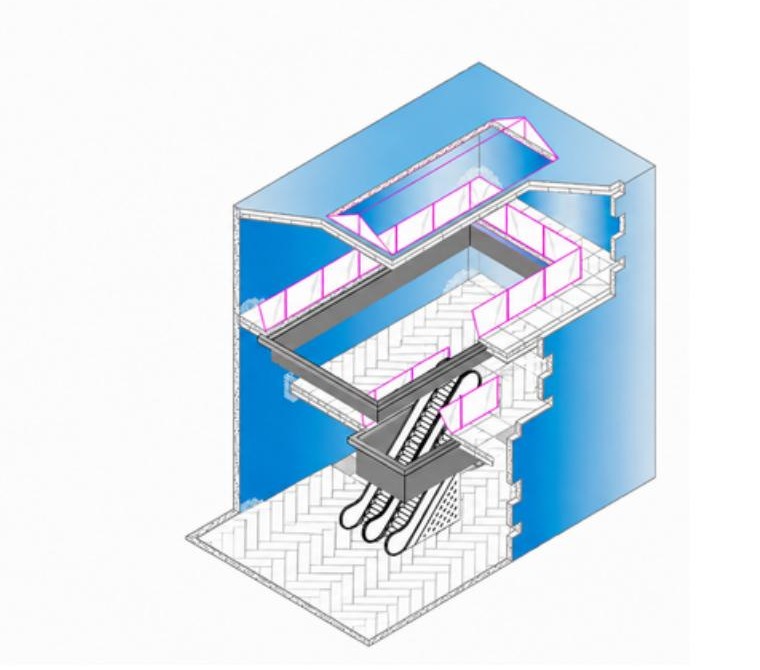

Escalator & Stair Protection

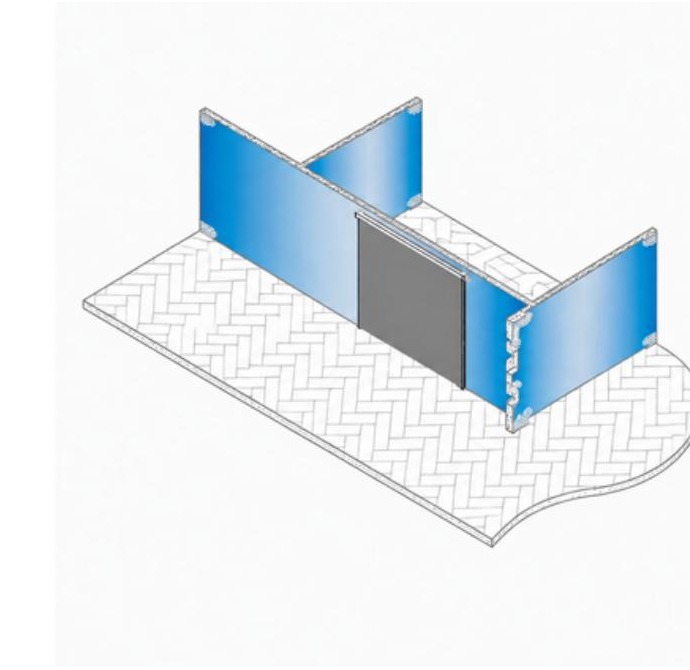

Protected Means of Escape

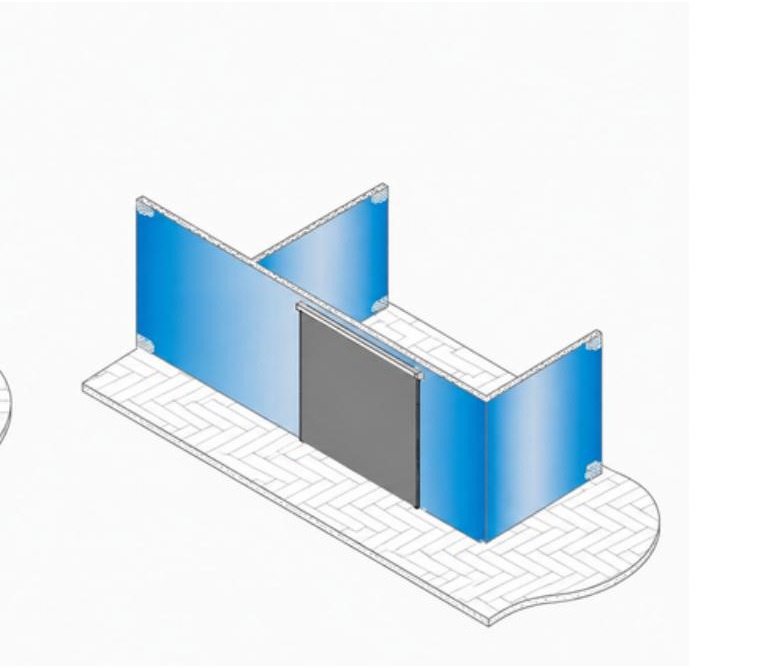

Protected Refuge Area

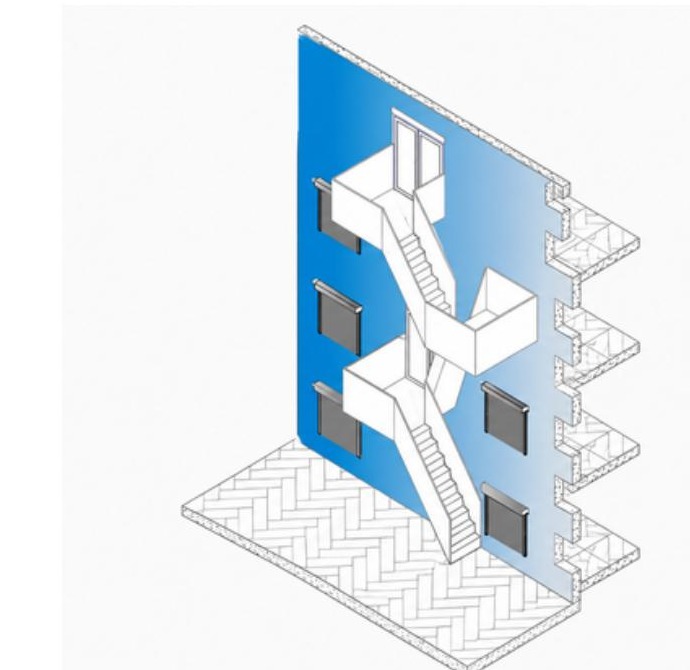

External Fire Protection

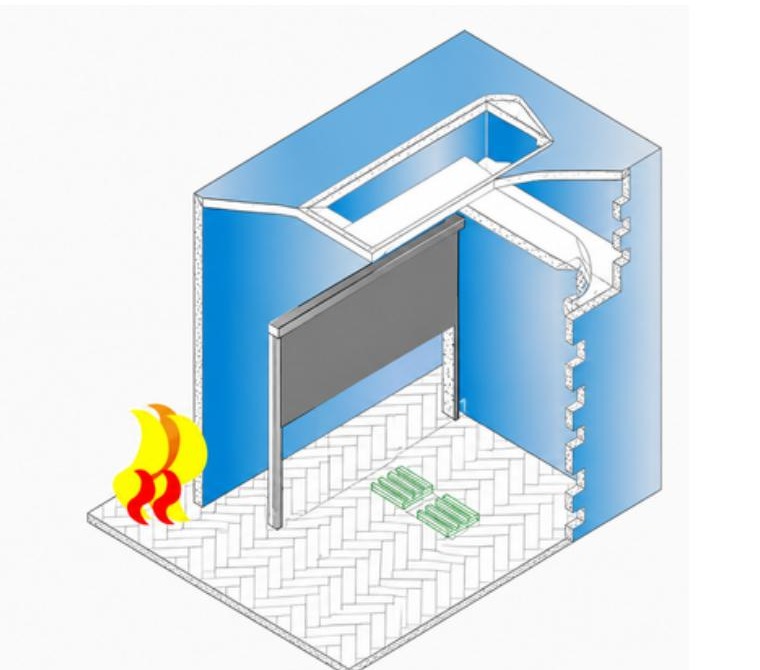

Fire Compartmentation
• Why Choose us
Precision engineering, backed by testing.
Performance figures across the range.
Redefining fire safety through intelligent design, seamless integration, and uncompromising performance — concealed within ceilings, invisible in daily use, and deployed automatically the instant it’s needed.
